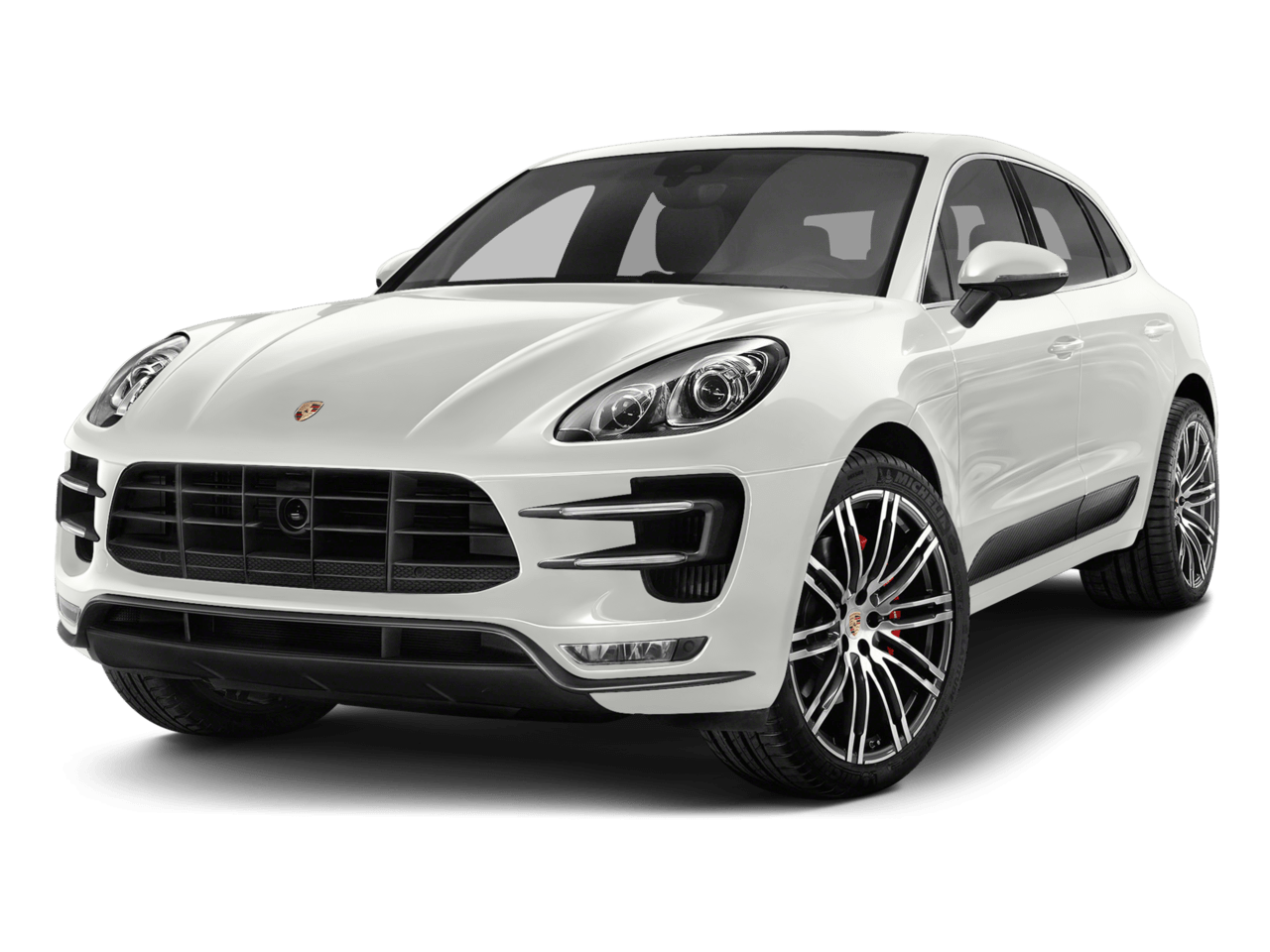

PORSCHE MACAN - 2.0 TFSI 245HP (2019 to 2021) - STAGE 1 PERFORMANCE SOFTWARE TUNE

OVERVIEW

The Porsche Macan 2.0 TFSI combines Porsche refinement, strong daily usability, and a responsive turbocharged platform that benefits greatly from proper ECU calibration. Powered by the 2.0L EA888 turbocharged engine and paired with Porsche’s 7-speed PDK transmission and all wheel drive system, this platform responds very well to tuning, especially in throttle response, mid range torque, and overall drivability. Porsche listings for this version show 245 hp and 370 Nm in factory form, which is approximately 273 lb.ft.

Our AMT performance software is designed to sharpen engine response, improve drivability, and increase usable power throughout the rev range while maintaining smooth and reliable operation.

STAGE 1 CALIBRATION

Stage 1 consists of an individual recalibration of the engine management system, including optimization of key parameters such as ignition, fueling, throttle response, torque control, and related ECU strategies.

This tune is intended for stock or lightly modified vehicles and is developed to improve performance and drivability while remaining within sensible operating limits for the platform. Your current page positions Stage 1 as the stock or lightly modified setup and Stage 2 as the airflow-supported upgrade path.

STAGE 2 CALIBRATION

Stage 2 is intended for vehicles equipped with supporting intake and exhaust modifications that improve airflow. The calibration is adjusted accordingly to take advantage of the hardware changes and deliver stronger overall performance.

KEY FEATURES

• RPM limiter increased
• Top speed governor removal where possible and available in software
• Improved fuel efficiency
• ECU individually reprogrammed
• Optimized responsiveness and drivability
• Optimized for 91 octane / 95 RON fuel
• Test drive with datalog analysis
• Emission standards maintained on standard calibrated applications
• Improved throttle response
• Datalog analysis

SOFTWARE AVAILABLE

• Stage 1 (89 / 91 Octane)
Requires K&N drop in filter

• Stage 2 (91 / 93 Octane or higher)
Requires cat back exhaust and cold air intake
Sports catalysts recommended

GEARBOX / TRANSMISSION TUNE

7 Speed PDK - TCU Tune

Stage 1 - 7 Speed PDK (Temic DL501 Gen2) Transmission Software

Recommended with Stage 1 or Stage 2 ECU tune

• Faster shift speed
• Increased RPM limit matched to ECU tune
• Increased line pressure
• Increased hold pressure
• Increased clutch clamping

Stage 2 - 7 Speed PDK (Temic DL501 Gen2) Transmission Software

Recommended with Stage 2 ECU tune

This section is based on the transmission tune information in your uploaded page.

PERFORMANCE

RECOMMENDED PARTS

Stage 1
K&N drop in filter

Stage 2
Sports catalysts recommended

REQUIRED PARTS FOR STAGE 2

• Cat back exhaust
• Cold air intake

These hardware notes follow your uploaded page.

VEHICLE INFORMATION

Production Date: 2019 to 2021
Engine: 2.0 TFSI EA888
ECU Make: Siemens / Continental
ECU Type: Simos 18.1 / 18.10
ECU Flashing Tool: PWG4 / OBD / Bench Flash
TCU Make: Temic
TCU Type: DL501 Gen2
TCU Flashing Tool: PWG4 / OBD / Bench Flash
Time Required: 5 to 6 hours when tuned at AMT

These ECU, TCU, and tool details come from your uploaded page. The 7-speed PDK transmission is also supported by Porsche technical references for this Macan generation.

PROGRAMMING OPTIONS

Powergate 4 tuning tool available as an option: YES
OBD port tuning at AMT Tuning: YES
ECU can be sent to AMT Tuning for flashing: YES

POWERGATE 4 OPTION

The Alientech Powergate 4 is available as an optional flashing tool for supported applications. It works through the OBD port using the Powergate phone app and allows the customer to read and write the ECU remotely, receive file updates, and return the vehicle to stock when needed.

Your current page describes the Powergate 4 as a phone app based tool using Bluetooth and internet connectivity, with support for iOS, Android, and EMUI, and no laptop required for standard Powergate operation.

ECU SHIPPING OPTION

If you are unable to bring the vehicle to us, the ECU can be removed and shipped to AMT Tuning for programming.

Please make sure the ECU is packed securely and that the package includes a note with the following information:

• Full name
• Order number
• VIN number
• Vehicle year and model
• Contact email
• Contact phone number

This information is required so we can correctly identify the ECU and match it to your order before programming begins.

PACKAGING INSTRUCTIONS

Please pack the ECU securely using anti static material and/or bubble wrap.
Ship in a strong padded box with tracking and insurance.

Improper packaging may result in damage during transit.

SHIPPING ADDRESS

AMT Tuning Ltd
6-25 Edilcan Drive
Concord, Ontario L4K 3S4
Canada

Phone: +1 877 469 9440
Email: sales@amttuning.com

IMPORTANT NOTES

• Powergate 4 tool is optional and the tune is sold separately
• OBD tuning at AMT Tuning is available for this application
• ECU shipping service is also available
• Final gains may vary depending on fuel quality, hardware, ECU software version, and market specification
• Please contact us before ordering if you would like confirmation for your exact vehicle and ECU version
