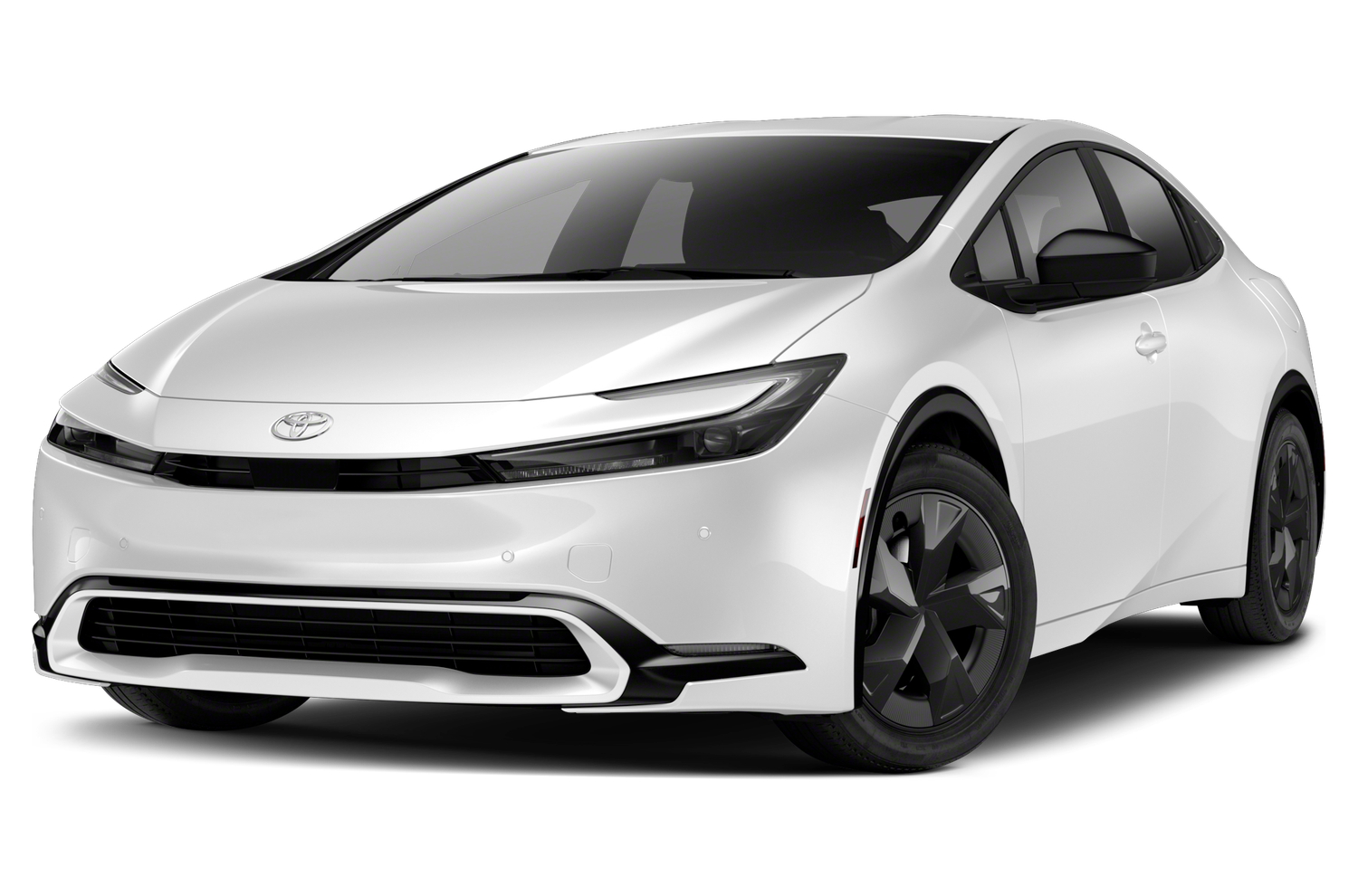

Toyota Prius XW60 2.0L Hybrid M20A-FXS ECU Tuning – 2023+

ECU Tuning Compatibility & Development

AMT Tuning is currently validating ECU tuning support for the fifth-generation Toyota Prius equipped with the 2.0L M20A-FXS hybrid powertrain.

This application uses Toyota's latest-generation hybrid system and a Denso engine control module. Although the engine belongs to the same M20A family used in several current Toyota applications, the Prius uses the Atkinson-cycle M20A-FXS engine and its own hybrid-specific engine management and calibration.

Tuning availability must therefore be confirmed for the individual vehicle before ordering.

Vehicle Application

Vehicle: Toyota Prius
Generation: XW60
Model Years: 2023+
Engine: 2.0L M20A-FXS
Engine Type: Naturally Aspirated, Atkinson Cycle
Drivetrain: Hybrid FWD / Electronic AWD depending on model
Transmission: Toyota electronically controlled hybrid transaxle / eCVT

Factory Performance

Gasoline Engine:
150 HP @ 6,000 RPM
139 LB-FT Torque

Hybrid System Output:
194 HP – FWD models
196 HP – AWD models

Factory output may vary by market and model year.

ECU Information

Known ECU information for the standard fifth-generation Prius includes:

ECU Manufacturer: Denso
Toyota ECU Reference: 89661-47E40
Denso Reference Observed: 283100-056

Confirmed ECU Family: Denso Gen4 R7F7012161

ECU hardware and software identification must be verified before tuning. Part numbers, software versions and programming compatibility can vary by market, production date and vehicle configuration.

Tuning Development Status

Stage 1: Compatibility validation in progress
Stage 2: Not yet released
ECU Read / Write: Supported via direct ECU bench connection
OBD / Powergate 4 Flashing: Currently under verification
Direct ECU Programming: Verification required
Published Performance Gains: Pending validation

AMT will not publish estimated horsepower or torque gains until the ECU calibration and complete hybrid powertrain response have been tested and verified.

Compatibility Verification

If you own a 2023+ Toyota Prius 2.0L and are interested in tuning, please contact AMT before purchasing.

To help us confirm your vehicle, please provide:

• Vehicle year and trim
• VIN
• FWD or AWD
• Clear photo of the engine ECU identification label
• Clear photo showing the complete ECU and both electrical connectors
• Any current engine or exhaust modifications

This information allows us to verify the exact ECU hardware and software version and determine the correct programming method.

Important Programming Information

Do not use flashing procedures, cables or ECU connections intended for another Toyota model unless AMT has confirmed compatibility with the ECU installed in your Prius.

The Prius uses hybrid-specific engine management, and compatibility cannot be determined from the M20A engine family alone.

Fuel

The factory M20A-FXS engine is designed for regular unleaded fuel. Fuel requirements for performance calibrations will be specified once each tuning level has been validated.

Contact AMT Tuning

For compatibility verification or development enquiries:

AMT Tuning Team
1-877-469-9440

Please have your VIN and ECU identification available when contacting us.
