AUDI RS3 - 2.5 TFSI GPF - 400HP - ( 2019-2021 ) - STAGE 1 PERFORMANCE SOFTWARE TUNE ( ECU TUNE )

Audi RS3 2.5 TFSI GPF Ecu Tune (8V MK2.5 )

Stage 1 consists of an individual reprogramming of the engine management system of the vehicle, whereby the adjustment of the engine parameters (e.g. ignition, injection, throttle response, torque limiters etc...) are customly adjusted. All engine parameter values at this stage remain within the safety standards prescribed by the manufacturer. Stage 1 is 100% reliable and emission compliant

Stage 2 requires aftermarket parts to enhance the intake and exhaust flow capabilities of the vehicle and provide a less restrictive path. The required parts are cold air intakes, downpipes (either catless or high flow) and an upgraded exhaust system. The stage 2 tune is reconfigured to account for the improved airflow. Please email or call us for recommendation on part selection!

Stage 3 requires aftermarket turbos that can provide more boost to have substantial power gains which further improve the driving dynamics of the vehicle, please call for further details and options.

7 Speed S Tronic - TCU Tune

Stage 1 - S Tronic Transmission Software

Recommended: Stage 1 & Stage 2 ECU Tune

Faster shift speed, Increased RPM Limit matched to ECU Tune, Increased line pressure, Increased hold pressure, Increased clutch clamping,

Stage 2 - S Tronic Transmission Software

Recommended: Stage 2 ECU Tune

Required: Stage 3 ECU Software (Tune)

Faster shift speed, Higher Shift Points, Increased RPM Limit matched to ECU Tune, Increased line pressure, Increased hold pressure, Increased clutch clamping,

ECU Tune Features:

Optimized for 91 Octane / 95 Ron gas
Improved Fuel Efficiency
ECU individually reprogrammed
Optimized Responsiveness and Drivability

Best possible performance and results, within the safety margins
100% emissions compliant

" NO PC/LAPTOP REQUIRED - NO EMAIILING FILES BACK AND FORTH EVERYTHING IS DONE USING YOU PHONE "

FLASH VEHICLE ANTWHERE ANYTIME IN MINUTES USING YOUR PHONE APP ANF FLASHING TOOL.

IF YOUR VEHICLE SOFTWARE MATCHES OUR UPLOADED SOFTWARE ON THE SERVER YOU CAN TUNE YOUR VEHICLE IN MINUTES, CUSTOM OPTIONS AND TUNES MAY TAKE THE USUAL 24HRS

GET PHONE NOTIFICATION FROM APP WHEN TUNE IS READY FOR FLASHING.

** ABILITY TO ERASE TOOL AND FLASH A DIFFERENT VEHICLE ( ERASE TOOL CREDITS COST $150 USD. PLEASE NOTE: ONCE ERASED PREVIOUS ACCOUNT AND TUNES ON THE SERVER ALSO GET ERASED, NEW TUNE MUST BE PURCHASED FOR NEW VEHICLE)

HOW DOES IT WORK?

1. CONNECTING TO THE VEHICLE

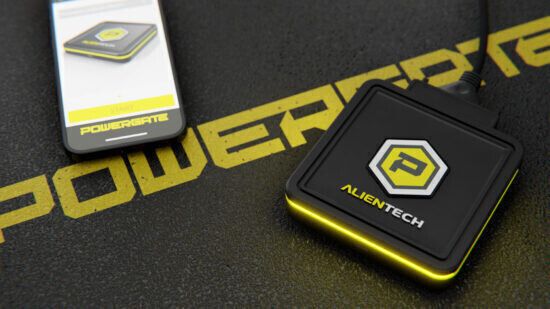

   • Connect Powergate to your vehicle through the OBD diagnosis port with the supplied cable and wait for the bright LED strip to turn BLUE. Log in to the Powergate App by creating a ALIEN_id profile to use Alientech services.
2. BLUETOOTH PAIRING
   • Connect your smartphone to Powergate via Bluetooth. Just activate it from the icon on your phone’s settings and start searching for available devices to pair. The Powergate’s LED rail will illuminate BLUE.
3. CONNECT TO THE INTERNET
   • Connect both Powergate and your smartphone to the same internet network. If a WI-FI router is not available. You can connect Powergate to your mobile network (Hotspot).
4. CHOICE OF VEHICLE
   • Choose the brand, type of fuel and model of your vehicle from the list of vehicles in the App. Once this operation has been carried out, it is necessary to go into detail and choose the motorization. To make this easier, you can read this information on your vehicle’s registration document.
5. IDENTIFICATION
   • The tuning phase begins. Perform ECU identification. The process may last up to a few minutes during which Powergate will be illuminated in RED.
6. READING
   • Take a ECU reading. This process has a variable time duration that is independent of Powergate. Wait until the end of the operation while the LED guide will be illuminated RED.
7. WRITING
   • At the end of the read process, the control unit has connected to Powergate, and you can write the file Altered. This process has a variable time duration that is independent of Powergate. Stand by without ever unplugging the instrument. When the operation is completed, the LED guide will light up GREEN.

KEY FEATURES

• Extensive vehicle list (+ 18.000 vehicles)
• RFID quick Initialization
• Multi-level customization
• Real-time session monitoring
• Automatic File Pairing
• Cloud Platform
• Precise and accurate customization of your vehicle
• Intuitive User Experience
• Remote Configuration & Customization
• Bluetooth Connectivity & Compact design

• Increased Performance
• Improved Fuel Efficiency
• Custom ecu remapping
• Non-invasive and reversible maps
• Up to 4 customizations of your vehicle
• No PC/Laptop is Required

OBD DB25 Connection

Powergate is compatible with both OBD cables for cars and motorcycles. The OBD cable has been designed in line with the aesthetics of the device to ensure a seamless and pleasant user experience.

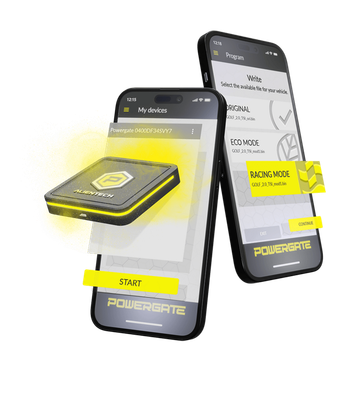

Powergate App

The Powergate app is compatible with the most widely used smartphone operating systems: iOS, Android, and EMUI, offering an intuitive tuning experience through vehicle performance customization. Once paired with the smartphone, it allows access to modified files on the Cloud. Furthermore, it’s possible to customize its skin: an effective tool for the Powergate Manager to create a distinctive visual identity, transcending geographical boundaries and differentiating from the competition.

Red-Programming

White-Firmware update

Purple-Wi-Fi Module update
