TOYOTA COROLLA 2.0L - ADD OPTIONS & UPGRADE TUNES - TOYOTA COROLLA 2.0 E210 (2023+)

NOTE: STAGE 1 IS A MUST (ENTRY TUNE) TO HIGHER STAGE TUNE. CAN'T PURCHASE OTHER STAGE TUNE IF YOU DON'T HAVE A STAGE 1 FILES WITH YOU*** Item "Stage 1 with P&B $75" is NOT a stage1 file.

TUNING OPTIONS

FLASHING SOFTWARE (SLAVE SOFTWARE LINKED TO AMT MASTER TOOL) with DIRECT ECU CONNECTION CABLE ( NO NEED TO SEND YOUR ECU - ECU REMAINS ON VEHICLE - UPDATE TUNES, ADD OPTIONS and FLASH BACK TO ORIGINAL ANYTIME )

Flashing Software (Requires Windows Laptop with Internet Connection) with Direct ECU Connection Cable with Supporting Flashing Software with 1 year Subscription Included which allows you to Read and Program the vehicles ECUs

Features

• Direct connection to the vehicle ECU with supplied ECU Connection Cable
• the ECU can be restored to factory settings at any time
• Safe to use and user-friendly
• Independently able to select and upload your map to your vehicle
• Standard connection to PC via USB port to configure the tools (cables included).
• Reads possible errors with DTC code, enabling you to erase them
• Slave Software linked to AMT Tuning's Master tool and its flashing protocols
• Ability to Tune Multiple vehicles ( Tunes are sold separately for each vehicle).
• Ability to Tune Different Makes & Models as long as AMT Tuning Supports it ( please contact for details)

PLEASE NOTE: Flashing software will NOT work with expired subscription, renew year subscription costs $250 USD

******************************************************************************************************************

ECU plug Type

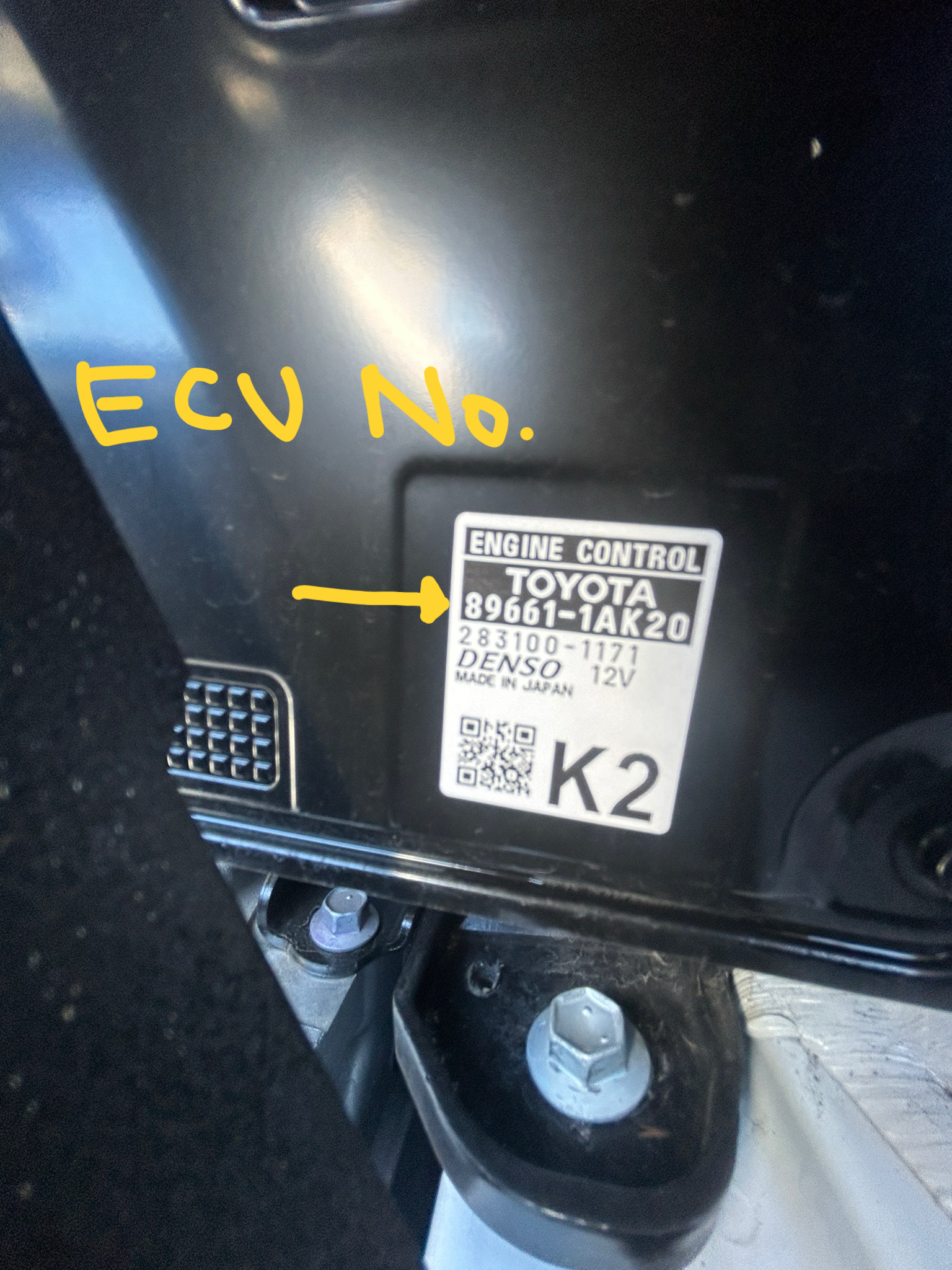

Early 2023 COROLLA ECU PLUG	Late 2023+ COROLLA ECU PLUG	2023+ - ECU PART NUMBER

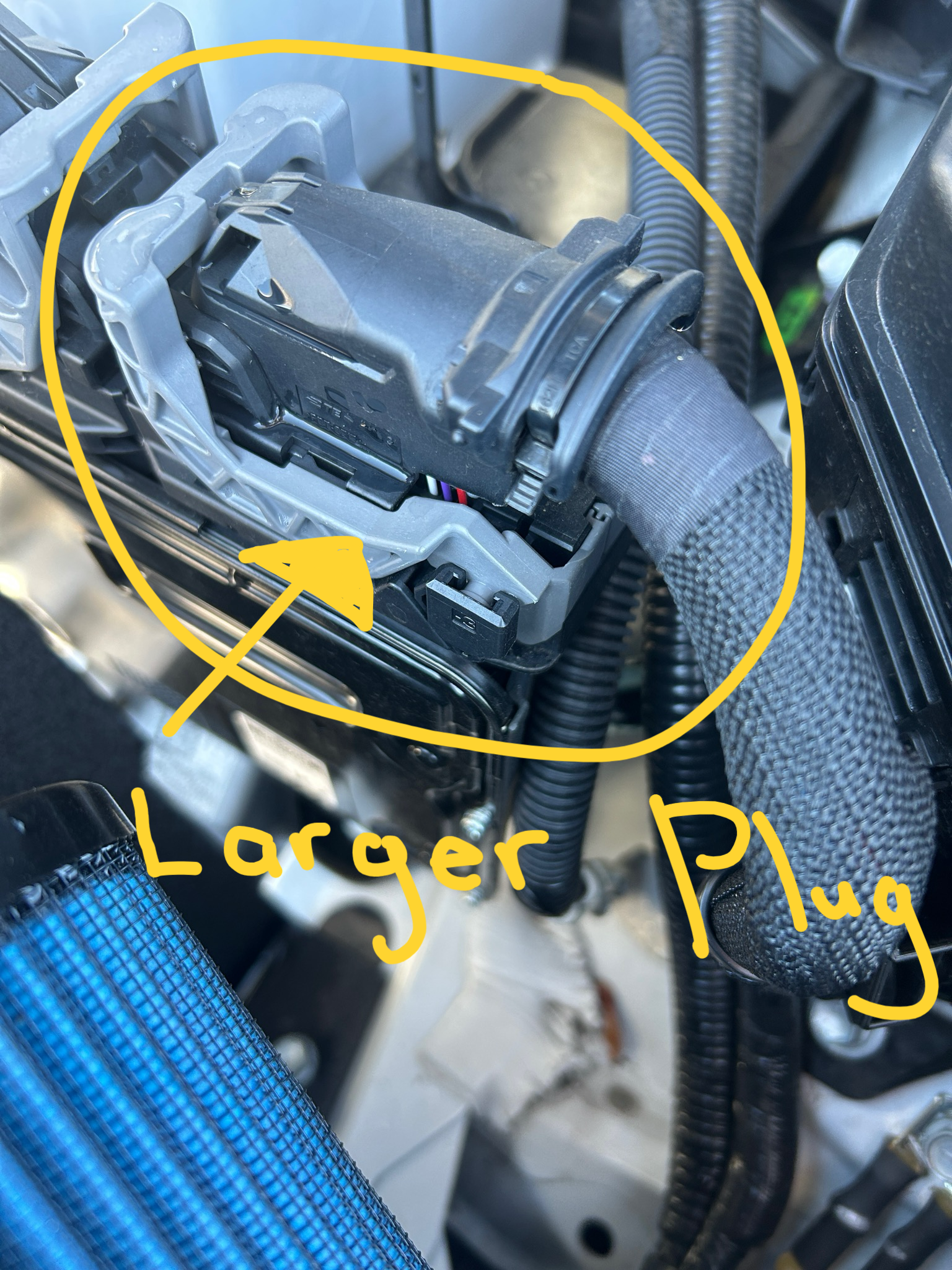

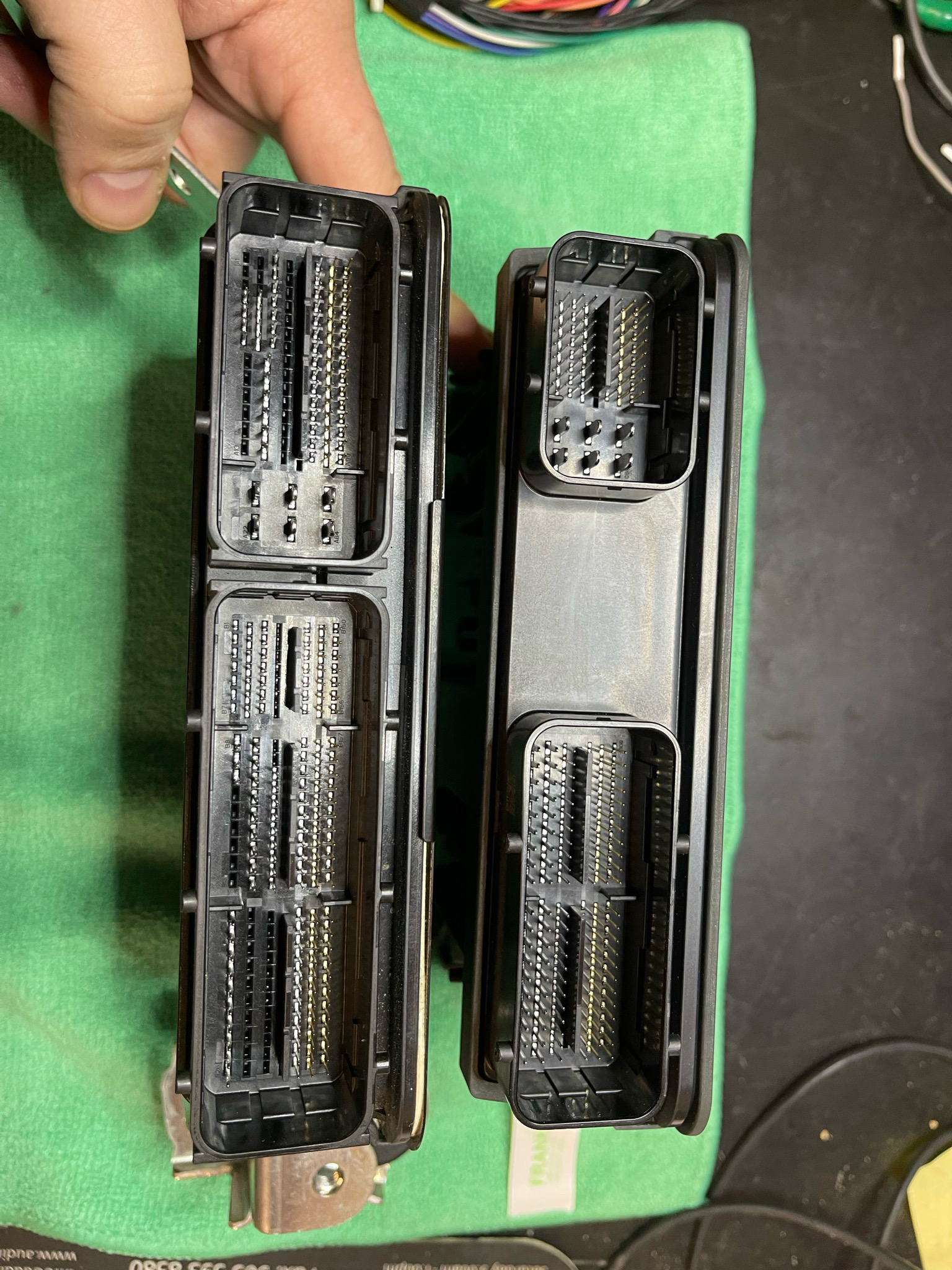

LEFT ECU ( TOP PLUG is LARGE 99pin ) - ECU ON LATE 2023 -> PRESENT Vehicles

RIGHT ECU ( TOP PLUG is SMALL - 62pin ) - ECU ON EARLY 2023 Vehicles

******************************************************************************************************************

DETAILS

In Stage 2 and Stage 3 tunes, the engine management system of the vehicle undergoes individual reprogramming. This involves custom adjustments to various engine parameters such as ignition, injection, throttle response, torque limiters, etc. All values pertaining to engine parameters will be meticulously adapted to accommodate additional modifications made to the vehicle. This includes aftermarket sports exhaust systems, headers (both catless and high-flow cat applications), and upgraded cold air intake. The aim is to ensure optimal performance and seamless integration with the enhanced components.

AVAILABLE FOR BOTH / SEDAN & HACHBACK

Features:

* Throttle Response Improved
* Decat (rear O2 delete) included in Stage 2
* Optimized for 91- 93 Octane
* Improved Fuel Efficiency
* ECU individually reprogrammed
* Optimized Responsiveness and Drivability
* Datalog analysis

Available Options

* EGR Removal Software ( For GGP EGR Delete Kit )

* Speed Limiter ( Governor Removal )

* Park / Neutral RPM limiter (CVT TRANSMISSION)

* Rear O2 delete software

BUY EGR DELETE KIT DIRECTLY FROM GGP ( Link: E210 Corolla EGR Delete (Half & Full) — Grocery Getter Performance )

STORE:

GGP Performance Products - e210 Corolla 2.0 — Shop — Grocery Getter Performance

* Software Available:
1. Stage 1 (89/91 Octane) - Requires K&N Drop in Filter

2. Stage 1 with Pops & Bangs (89/91 Octane) - Requires K&N Drop in Filter & Catback Exhaust

3. Stage 2 (91/93 Octane) - Requires Cold Air Intake & Catback Exhaust

4. Stage 2 with Pops & Bangs (91/93 Octane) - Requires Cold Air Intake & Catback Exhaust

5. Stage 2+ (91/93 Octane) - Requires Cold Air Intake, Catback Exhaust optimized 2J Headers

6. Stage 2+ with Pops & Bangs (91/93 Octane) - Requires Cold Air Intake, Catback Exhaust optimized 2J Headers

7. Stage 2++ (91/93 Octane) more aggressive tune, more power & torque better throttle response - Requires Cold Air Intake, Catback Exhaust optimized for 2J Headers

8. Stage 2++ with Pops & Bangs (91/93 Octane) more aggressive tune, more power & torque better throttle response - Requires Cold Air Intake, Catback Exhaust optimized for 2J Headers

9. Stage 3 (91/93 Octane) more aggressive tune, more power & torque better throttle response. - Requires: Camry 2.5L Throttle Body, GGP TB Adaptor, Cold Air Intake, Catback Exhaust optimized for 2J Headers

10. Stage 3 with Pops & Bangs (91/93 Octane) more aggressive tune, more power & torque better throttle response. - Requires: Camry 2.5L Throttle Body, GGP TB Adaptor, Cold Air Intake, Catback Exhaust optimized for 2J Headers

BUY GGP TB(Throttle Body) ADAPTOR, DIRECTLY FROM GGP ( Link: E210 Corolla EGR Delete (Half & Full) — Grocery Getter Performance )

- 2J Racing Store - 2019+ Corolla 2.0L (2j-racing.com)

BUY 2J Racing Headers: E210 Polished Header (2j-racing.com)

SPEC. SHEET

	Ori.	Stage 1	Stage2
Power (HP)	168	186	200
Torque (lb.ft)	155	170	186
Recommended Parts: Headers (for Stage 2) Required Parts: Cat-Back Exhaust , Cold Air Intake (for Stage 2)
